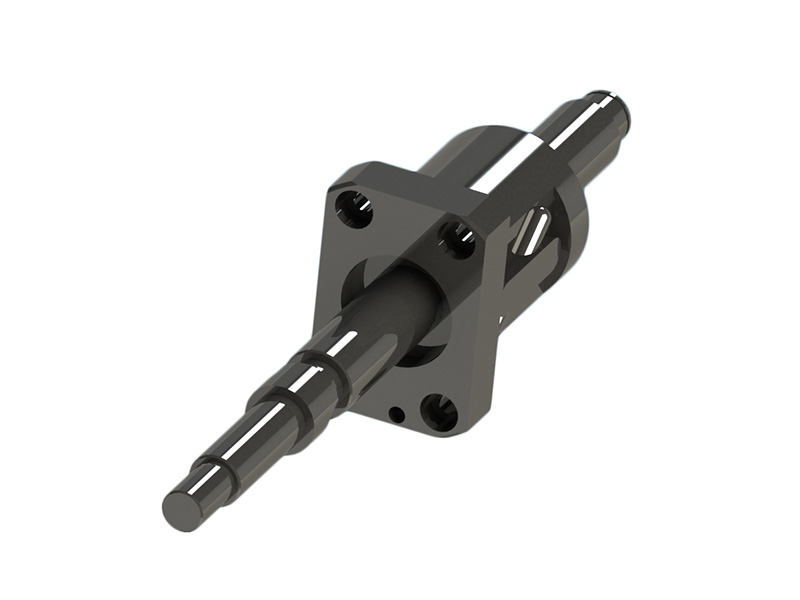

BSG2020
Outline
Specification content
Speed and thrust
Options
Download

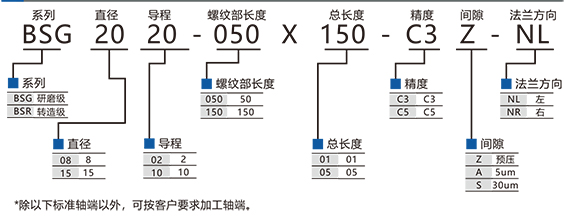

*备注:除以上标准轴端以外,可按客户要求加工轴端。
项目内容
单位
型号
BSG2020
精度等级
-
C3
C5
轴向间隙
um
0
5
基本额定动负载
N
5150
9200
基本额定静负载
N
7450
16200
预压扭矩
N・cm
0~17.0
0~4.0
循环数
*卷1列
1.5
1.5
钢球直径
mm
4.7625
4.7625
PDF catalog download
Product drawing Download
3D drawing download
