BSR0810
Outline
Specification content
Speed and thrust
Options
Download
项目内容
单位
型号
BSR0810
精度
-
Ct7
轴向间隙
um
0
基本额定动负载
N
2200
基本额定静负载
N
3900
预压扭矩
N・cm
无
循环数
*卷1列
1.6X2
钢球直径
mm
1.5875
PDF catalog download

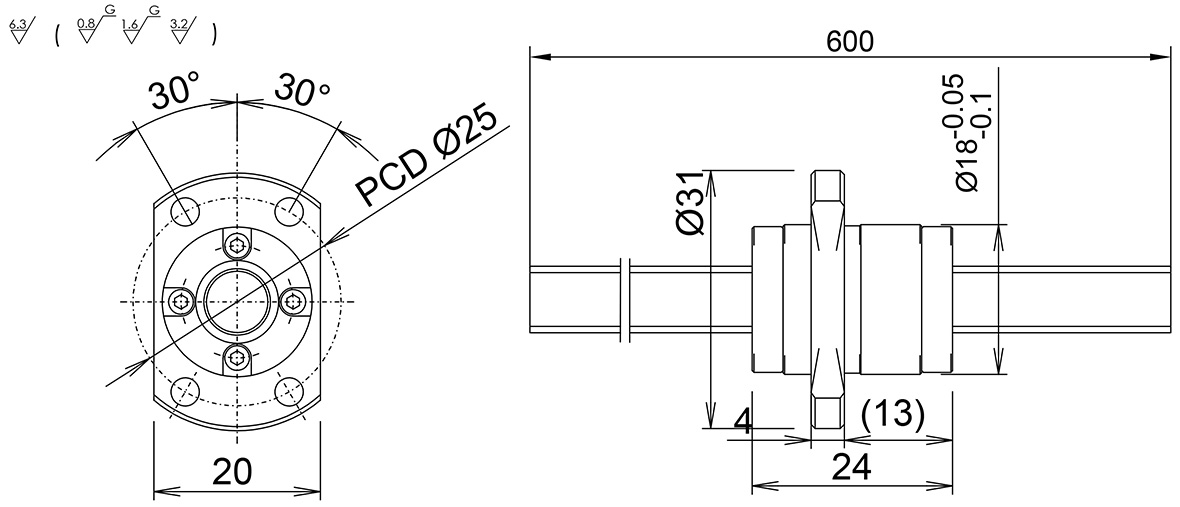

Product drawing Download
3D drawing download
